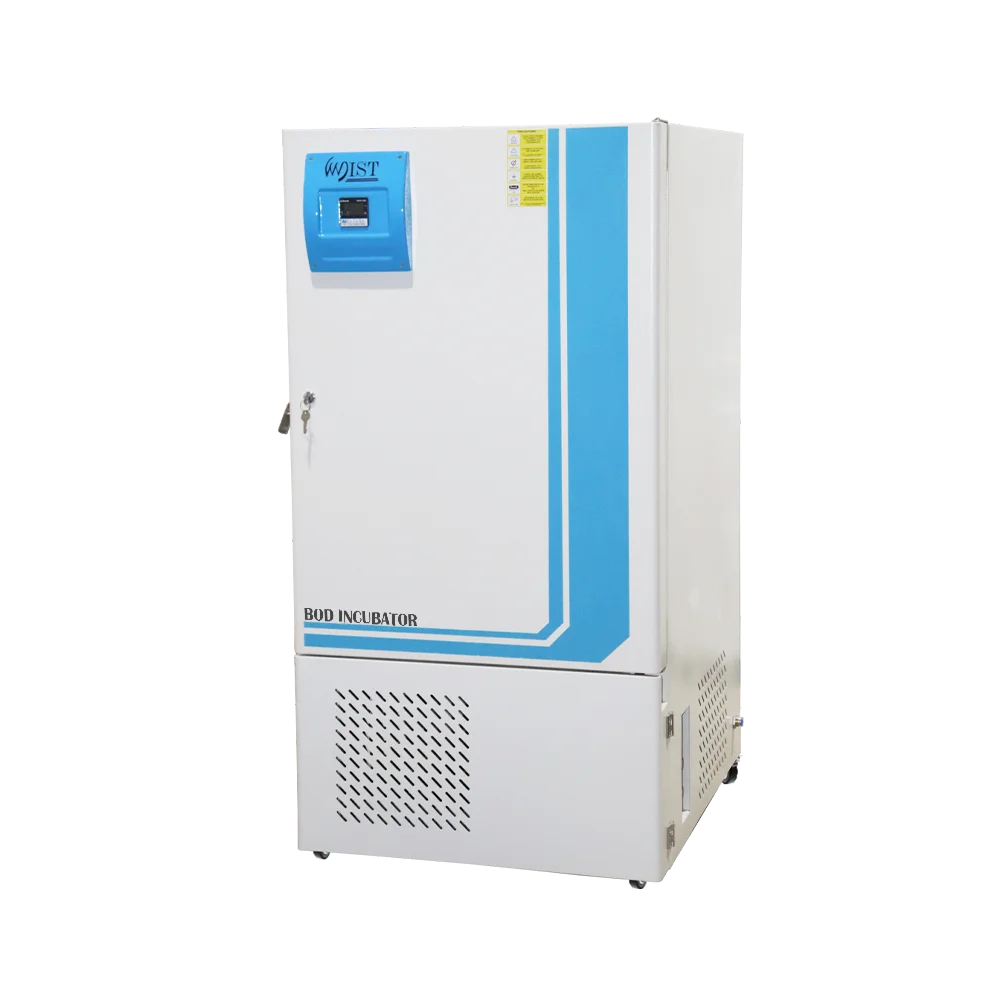

BOD Incubator

• Outer cabinet made of powder-coated steel in white & blue finish
• Inner chamber constructed with corrosion-resistant SS 304-grade steel
• PUF insulation (60 mm) for maximum thermal efficiency
• Double-walled door with magnetic gasket and lock
• CFC-free refrigeration system with air-cooled compressor
• Low-vibration design with quiet operation
• Top-mounted control panel for ergonomic access
• 20 mm access port for sensors/cables

• Supplied with adjustable stainless steel wire mesh trays
• Trays designed for optimal airflow and sample spacing
• Each shelf supports up to 20 kg
• Flexible tray positioning for various sample sizes
• Standard tray pitch: 35 mm

Safety & Alarms

• High/low temperature alarms with buzzer alert
• Backup safety thermostat in case of controller failure
• MCB for electrical safety
• Compressor delay timer to protect refrigeration system

Advanced Control System

• PID controller with digital temperature display
• 0.1°C resolution with real-time monitoring
• High-accuracy PT100 sensor for precise temperature control
• Programmable up to 8 steps (heating/cooling cycles)
• Timer up to 9999 minutes with delay start
• Visual & audible alerts on completion
• Optional RS485 Modbus communication interface
